UN100 - NPN, high power transistor. For high power audio and linear applications. Power switching circuits such as relay or solenoid drivers, DC to DC converters or inverters. Vceo = 100Vdc, Vcer = 100Vdc, Vcb = 200Vdc, Veb = 7Vcd, Ic = 15Adc, PD

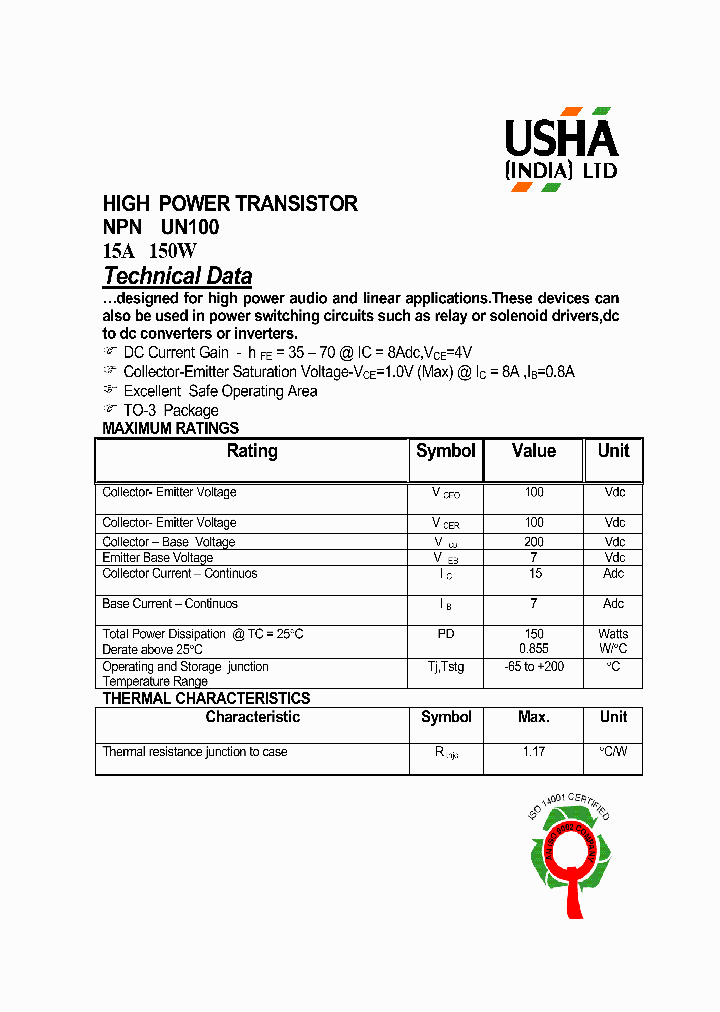

UN100_8618869.PDF Datasheet


Part No. UN100
Description NPN, high power transistor. For high power audio and linear applications. Power switching circuits such as relay or solenoid drivers, DC to DC converters or inverters. Vceo = 100Vdc, Vcer = 100Vdc, Vcb = 200Vdc, Veb = 7Vcd, Ic = 15Adc, PD

File Size 46.86K  /  2 Page

Maker

USHA India LTD
